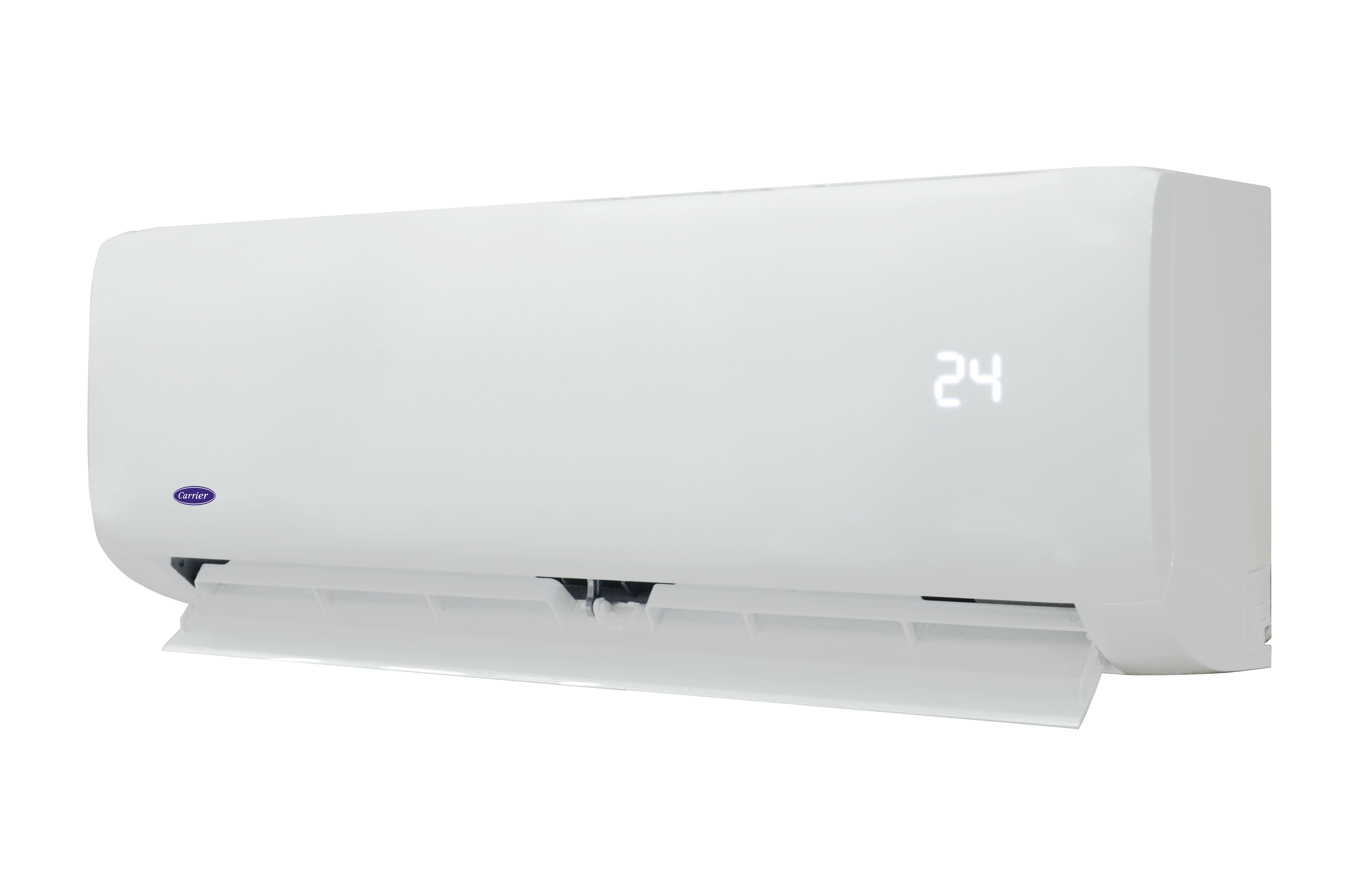

CARRIER Hi Wall 7.60KW / 7.0K INDOOR Allure Plus
Product code:
AHK7601
| Product Group : | CARRIER |
|---|
General Information
| Product Group : | CARRIER |
|---|---|
| Colour : | Arctic White |
| Moisture Removal Volume : | 2.24 L/h |
| Remote Control Provided : | Yes |
Additional Info
| Family : | Allure Plus |
|---|---|
| Indoor/ Outdoor/ Other : | Indoor |
| Indoor Units Connectable (Quantity) : | 1 |
| Single Split / Multi Split : | Single |
Air Volume/Air Flow
| Air Flow Cooling (Low/Medium/High) : | 75/94/128 L/s |
|---|
Capacity
| Nominal Cooling Capacity : | 7.0 kW |
|---|---|
| Nominal Heating Capacity : | 7.60 kW |
Connections
| Pipe Diameter Gas Side : | 15.9 mm |
|---|---|
| Pipe Diameter Liquid Side : | 6.35 mm |
Connectivity
| Pre-Equipped Wifi : | Yes |
|---|
Cooling Capacity
| Cooling Capacity (Min/Max) : | 3.20-8.00 kW |
|---|
Electrical
| Current (Cooling) : | 8.62 A |
|---|---|
| Current (Heating) : | 9.04 A |
| Input (Cooling) : | 2.00 kW |
| Input (Heating) : | 2.07 kW |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
Heating Capacity
| Heating Capacity (Min/Rated/Max) : | 2.26-8.82 kW |
|---|
Indoor Unit Attributes
| Depth (IU) : | 234 mm |
|---|---|
| Height (IU) : | 337 mm |
| Net Weight (IU) : | 13.5 kg |
| Sound Pressure Level Cooling (IU) (Low/Medium/High) : | 36.5/42/50 dB(A) |
| Width (IU) : | 1082 mm |
Pipes
| Max Height Difference : | 25 m |
|---|---|
| Max Pipe Length Without Additional Refrigerant : | 5 m |
| Max Pipe Run : | 50 m |
| Min Piping Length : | 3 m |
Refrigerant
| Refrigerant : | R32 |
|---|---|
| Refrigerant Charge : | 1400 g |
Willis Carrier invented modern air conditioning in 1902, and his brand has set new standards with the Allure Plus Inverter Hi-Wall split system.Key features include Wi-Fi technology, Active Energy Control, and a self-cleaning outdoor unit. The sleek design of the indoor unit complementsany décor while providing quiet and effective cooling, making it one of the best Carrier Hi-Wall Inverter Split Systems available.GOLDEN FIN TREATMENTThe outdoor unit features an anti-corrosive coating to prevent rust,especially in seaside areas. The indoor unit has a 5-layer structure withanti-corrosion, self-lubrication, and self-cleaning functions to enhanceefficiency.UV LAMPThe UV lamp helps keep your system clean by eradicating bacteria, mould, andmildew so they do not become airborne and circulate throughout your home.LEAK DETECTIONThe Allure Plus series has a number of functions designed to keep you safe andidentify a system glitch. In the unlikely case of a refrigerant leak, the system willautomatically stop and display the error code on the indoor unit, your controller, andthe app.SMART DIAGNOSISSmart Diagnosis tests 97 functions through a mobile app, displaying an "EC" errorcode when issues are detected. Users can also perform a self-check by swiping onthe app to check for maintenance needs, providing 24/7 technician-like support.
| File name | File type | Extension | Size |
|---|---|---|---|
| carrier-allure-plus-ast-4308437.pdf | Brochures | 1.97 MB |
