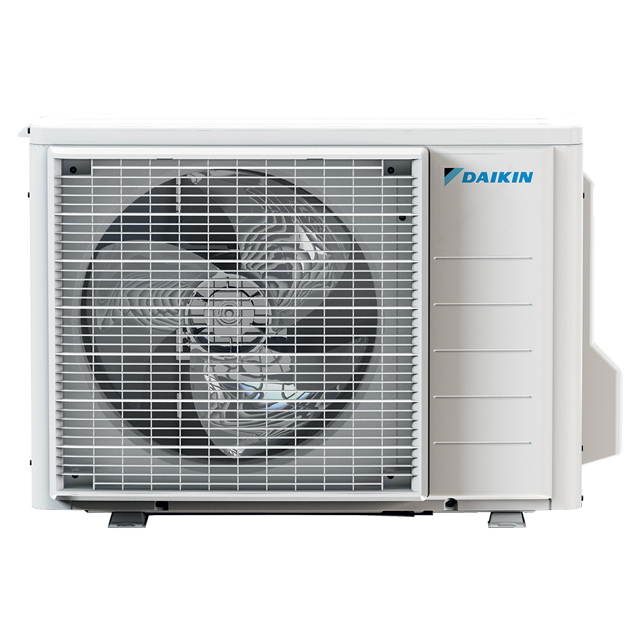

DAIKIN 2.5kW R32 Zena (White/Black) RC ODU
Product code:
DHP0642
This product requires F-Gas certificate
| Product Group : | DAIKIN |
|---|
General Information
| Product Group : | DAIKIN |
|---|
Additional Info
| Family : | Zena |
|---|---|
| Indoor/ Outdoor/ Other : | Outdoor |
| Indoor Units Connectable (Quantity) : | 1 |
| Single Split / Multi Split : | Single |
Capacity
| Nominal Cooling Capacity : | 2.5 kW |
|---|---|
| Nominal Heating Capacity : | 3.2 kW |
Connections
| Pipe Diameter Gas Side : | 9.5 mm |
|---|---|
| Pipe Diameter Liquid Side : | 6.35 mm |
Connectivity
| Pre-Equipped Wifi : | Yes |
|---|
Cooling Capacity
| Cooling Capacity (Min/Max) : | 0.9-3.7 kW |
|---|
Electrical
| Input (Cooling) : | 0.49 kW |
|---|---|
| Input (Heating) : | 0.66 kW |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 4.85 |
|---|---|
| EER : | 5.10 |
Heating Capacity
| Heating Capacity (Min/Rated/Max) : | 0.9-5.0 kW |
|---|
Outdoor Unit Attributes
| Depth (OU) : | 284 mm |
|---|---|
| Height (OU) : | 550 mm |
| Max Sound Power Level (OU) : | 60 dB(A) |
| Net Weight (OU) : | 30 kg |
| Width (OU) : | 675 mm |
Pipes
| Max Height Difference : | 15 m |
|---|---|
| Max Pipe Run : | 20 m |
Refrigerant
| Refrigerant : | R32 |
|---|
Temperature
| Outdoor Operating Temp. Range (Cooling) : | -10/46 °C |
|---|---|
| Outdoor Operating Temp. Range (Heating) : | -15/18 °C |
The Zena Vogue offers a premium climate solution with a compact and functional design suitable for all interiors. Your design, our product. Together creating simply perfect comfort all year round.COMFORT AIRFLOWDischarge louvres are specially designed to stream cooling air upwards along the ceiling (coanda effect) and warm air down along the floor. This delivers rapid cooling or heating and even temperature distribution.SIMPLY PERFECT DESIGNWhether you choose the white or blackwood finish, Zena Vogue’s curved corners and simple textured front panel allow it to blend perfectly into any decor.GRID EYE SENSORThe intelligent grid eye sensor detects the temperature in the room using a grid of 64 small squares. It then directs air to the areas that require more cooling or heating for even temperature distribution.ULTRA COMPACTAt just 798mm long, 295mm high and 185mm deep, Zena Vogue incredibily compact yet surprisingly powerful.WHITE HAIRLINE OR BLACKWOODFINISHSIMPLY PERFECTHEAVY DUTY PURIFICATIONDaikin’s streamer technology offers heavy duty air purification. The high speed electron discharge destroys bacteria, mould and allergens at a much higher speed than most conventional air filters, leaving your air safe to breathe.BLACKWOOD FINISH WHITE HAIRLINE FINISHPROGRAM DRY FUNCTIONBesides reducing humidity, this function automatically controls temperature and airflow rate and will cleverly switch into cooling mode if the room temperature rises too much
| File name | File type | Extension | Size |
|---|---|---|---|
| daikin-zena-ast-4303184.pdf | Brochures | 925.77 KB |
