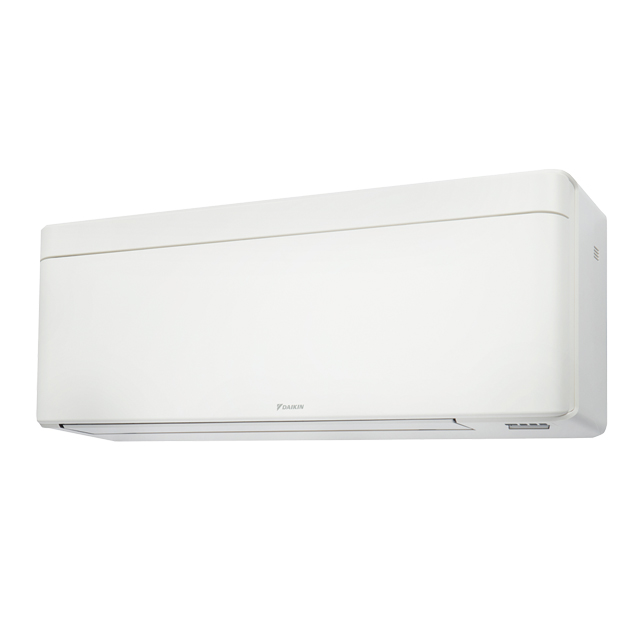

DAIKIN 6.0kW R32 Zena (White) RC IDU
Product code:
DHP0490
| Product Group : | DAIKIN |
|---|
General Information
| Product Group : | DAIKIN |
|---|---|
| Colour : | Arctic White |
| Remote Control Provided : | Yes |
Additional Info
| Family : | Zena |
|---|---|
| Indoor/ Outdoor/ Other : | Indoor |
| Indoor Units Connectable (Quantity) : | 1 |
| Single Split / Multi Split : | Single |
Air Volume/Air Flow
| Air Flow Cooling : | 243 L/s |
|---|---|
| Air Flow Heating : | 273 m³/h |
Capacity
| Nominal Cooling Capacity : | 6.0 kW |
|---|---|
| Nominal Heating Capacity : | 7.2 kW |
Connections
| Pipe Diameter Gas Side : | 12.7 mm |
|---|---|
| Pipe Diameter Liquid Side : | 6.35 mm |
Connectivity
| Pre-Equipped Wifi : | Yes |
|---|
Cooling Capacity
| Cooling Capacity (Min/Max) : | 1.1-6.5 kW |
|---|
Electrical
| Input (Cooling) : | 1.83 kW |
|---|---|
| Input (Heating) : | 1.83 kW |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 3.83 |
|---|---|
| EER : | 3.28 |
Heating Capacity
| Heating Capacity (Min/Rated/Max) : | 1.0-8.2 kW |
|---|
Indoor Unit Attributes
| Depth (IU) : | 185 mm |
|---|---|
| Height (IU) : | 295 mm |
| Net Weight (IU) : | 11 kg |
| Sound Power Level Cooling (IU) : | 32/45 dB(A) |
| Sound Power Level Heating (IU) : | 32/45 dB(A) |
| Width (IU) : | 798 mm |
Pipes
| Max Height Difference : | 20 m |
|---|---|
| Max Pipe Run : | 30 m |
Refrigerant
| Refrigerant : | R32 |
|---|
BEST FOR:• MODERN CONTEMPORARY ROOMS• HEATING OR COOLING A SMALL AREA OF YOUR HOME• MAINTAINING ROOM AMBIENCEZENAVOGUEThe Zena Vogue offers a premium climate solution with a compact and functional design suitable for all interiors. Your design, our product. Together creating simply perfect comfort all year round.COMFORT AIRFLOWDischarge louvres are specially designed to stream cooling air upwards along the ceiling (coanda effect) and warm air down along the floor. This delivers rapid cooling or heating and even temperature distribution.SIMPLY PERFECT DESIGNWhether you choose the white or blackwood finish, Zena Vogue’s curved corners and simple textured front panel allow it to blend perfectly into any decor.GRID EYE SENSORThe intelligent grid eye sensor detects the temperature in the room using a grid of 64 small squares. It then directs air to the areas that require more cooling or heating for even temperature distribution.ULTRA COMPACTAt just 798mm long, 295mm high and 185mm deep, Zena Vogue incredibily compact yet surprisingly powerful.WHITE HAIRLINE OR BLACKWOODFINISHSIMPLY PERFECTHEAVY DUTY PURIFICATIONDaikin’s streamer technology offers heavy duty air purification. The high speed electron discharge destroys bacteria, mould and allergens at a much higher speed than most conventional air filters, leaving your air safe to breathe
| File name | File type | Extension | Size |
|---|---|---|---|
| daikin-zena-ast-4307352.pdf | Brochures | 925.77 KB |
