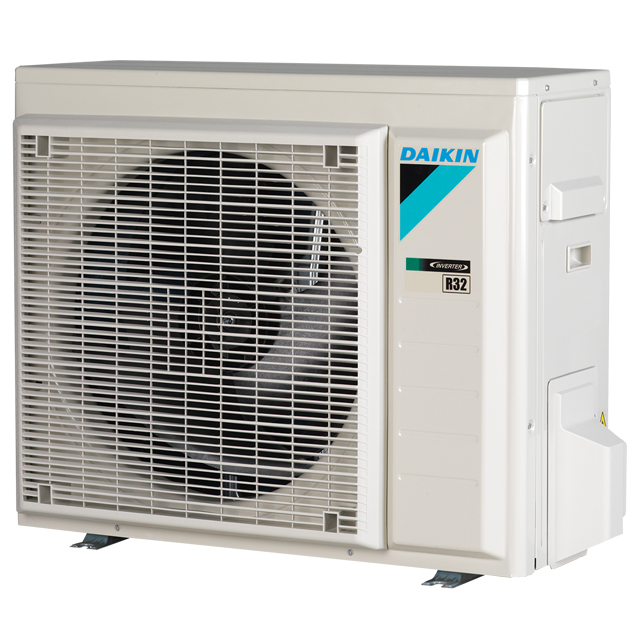

DAIKIN 7.1kW RC Cora ODU
Product code:
DHP0666
| Product Group : | DAIKIN |
|---|
General Information
| Product Group : | DAIKIN |
|---|
Additional Info
| Family : | Cora |
|---|---|
| Indoor/ Outdoor/ Other : | Outdoor |
| Indoor Units Connectable (Quantity) : | 1 |
| Single Split / Multi Split : | Single |
Capacity
| Nominal Cooling Capacity : | 7.1 kW |
|---|---|
| Nominal Heating Capacity : | 8.1 kW |
Connections
| Pipe Diameter Gas Side : | 15.9 mm |
|---|---|
| Pipe Diameter Liquid Side : | 6.35 mm |
Cooling Capacity
| Cooling Capacity (Min/Max) : | 2.0-8.9 kW |
|---|
Electrical
| Input (Cooling) : | 1.93 kW |
|---|---|
| Input (Heating) : | 1.92 kW |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 3.68 |
|---|---|
| EER : | 4.22 |
Heating Capacity
| Heating Capacity (Min/Rated/Max) : | 2.0-10.8 kW |
|---|
Outdoor Unit Attributes
| Depth (OU) : | 350 mm |
|---|---|
| Height (OU) : | 695 mm |
| Net Weight (OU) : | 60 kg |
| Sound Power Level Cooling (OU) : | 65 dB(A) |
| Sound Power Level Heating (OU) : | 66 dB(A) |
| Width (OU) : | 930 mm |
Pipes
| Max Height Difference : | 20 m |
|---|---|
| Max Pipe Run : | 30 m |
Refrigerant
| Refrigerant : | R32 |
|---|
Temperature
| Outdoor Operating Temp. Range (Cooling) : | -10/46 °C |
|---|---|
| Outdoor Operating Temp. Range (Heating) : | -15/18 °C |
Delivering the ultimate balance of performance, efficiency and quietness to your living space, the Daikin Cora has been designed to perform in New Zealand conditions. The series features higher energy star ratings, whisper quiet sound levels* and next generation odour removal technology for powerful and thorough climate and air quality control.
