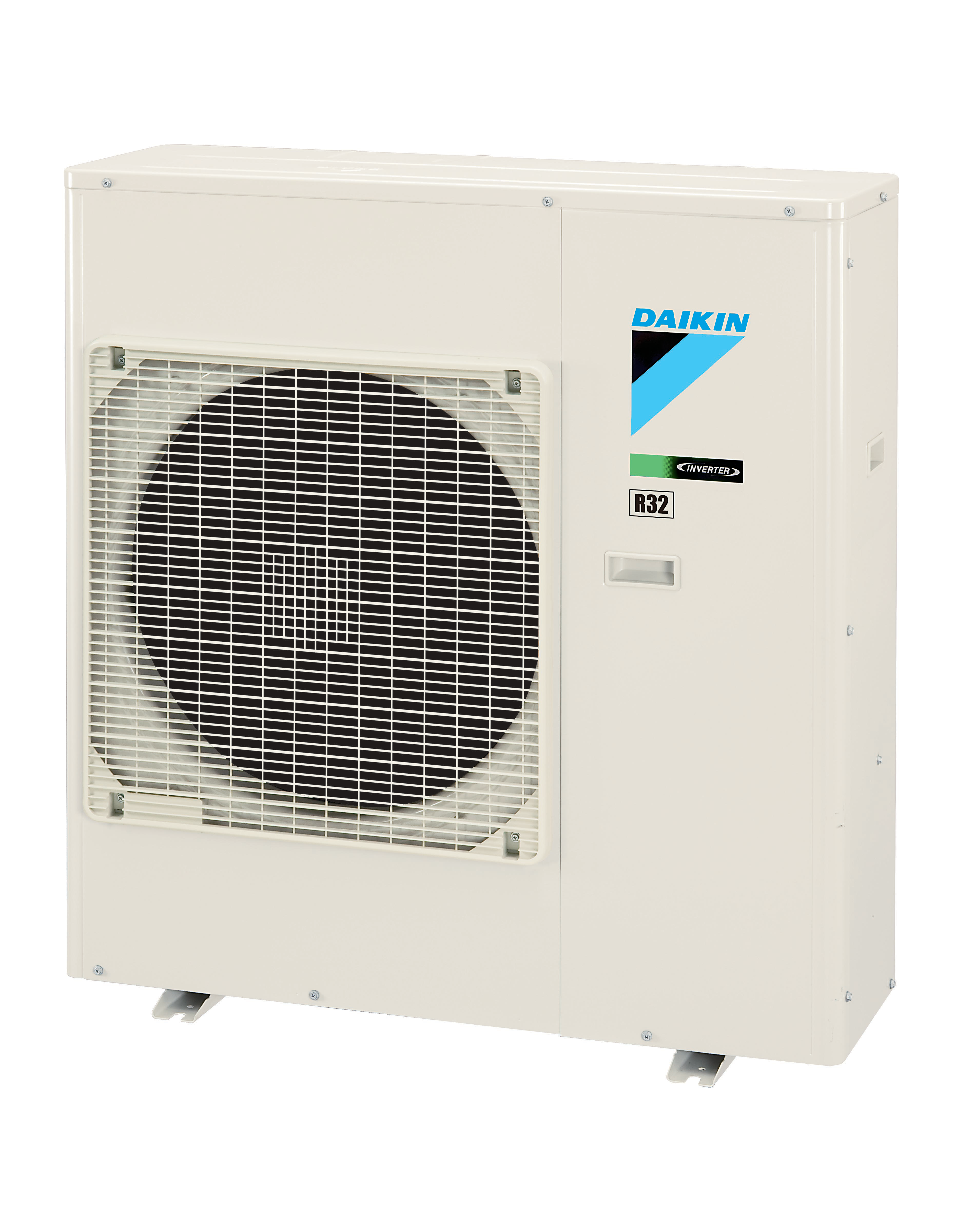

DAIKIN 8.0kW R32 Standard RC ODU
Product code:
DHP0680
| Product Group : | DAIKIN |
|---|
General Information
| Product Group : | DAIKIN |
|---|
Additional Info
| Indoor Units Connectable (Quantity) : | 1 |
|---|---|
| Single Split / Multi Split : | Single Split |
Cooling Capacity
| Cooling Capacity : | 8.0 kW |
|---|
Electrical
| Power Supply : | 220-240/1/50 V/Ph/Hz |
|---|---|
| Recommended Fuse : | 20 A |
Energy Efficiency/Performance
| COP : | 3.27 |
|---|---|
| EER : | 3.69 |
Fan
| Number Of Fans : | 1 |
|---|
Heating Capacity
| Heating Capacity : | 9.0 kW |
|---|
Measurements
| Depth : | 320 mm |
|---|---|
| Height : | 990 mm |
| Weight : | 77 kg |
| Width : | 940 mm |
Pipes
| Max Height Difference : | 20 m |
|---|---|
| Max Piping Length : | 30 m |
Refrigerant
| Refrigerant : | R32 |
|---|---|
| Refrigerant Pipe Size : | 1/4 - 5/8 in |
| Refrigerant precharged up to : | 10 m |
Temperature
| Temperature Range Cooling : | -10 - 46 °C |
|---|---|
| Temperature Range Heating : | -15 -18 °C |
| File name | File type | Extension | Size |
|---|---|---|---|
| daikin-standard-series-ast-4301864.pdf | Brochures | 4.6 MB |
