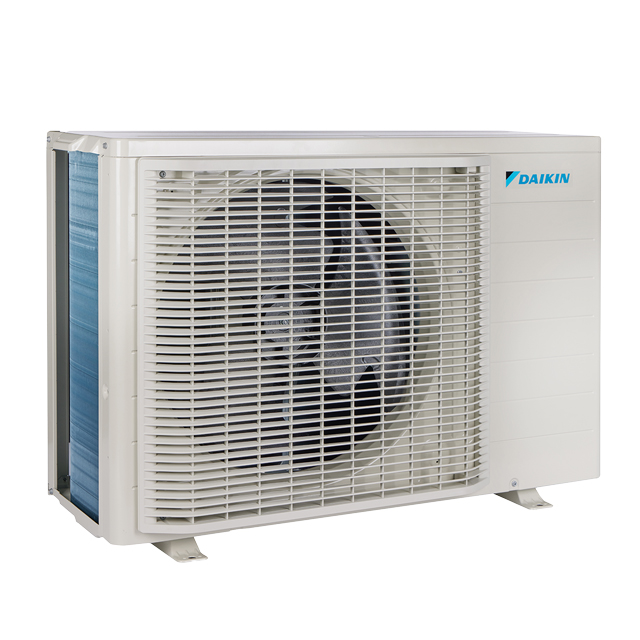

Daikin Alira X 2.5kW OD R32
Product code:
DHP0651
This product requires F-Gas certificate
| Product Group : | DAIKIN |
|---|
General Information
| Product Group : | DAIKIN |
|---|
Additional Info
| Family : | Alira |
|---|---|
| Indoor/ Outdoor/ Other : | Outdoor |
| Indoor Units Connectable (Quantity) : | 1 |
| Single Split / Multi Split : | Single |
Capacity
| Nominal Cooling Capacity : | 2.5 kW |
|---|---|
| Nominal Heating Capacity : | 3.2 kW |
Connections
| Pipe Diameter Gas Side : | 9.5 mm |
|---|---|
| Pipe Diameter Liquid Side : | 6.35 mm |
Cooling Capacity
| Cooling Capacity (Min/Max) : | 1.0-3.7 kW |
|---|
Electrical
| Input (Cooling) : | 0.47 kW |
|---|---|
| Input (Heating) : | 0.64 kW |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 5.38 |
|---|---|
| EER : | 5.0 |
Heating Capacity
| Heating Capacity (Min/Rated/Max) : | 1.0-5.4 kW |
|---|
Outdoor Unit Attributes
| Depth (OU) : | 284 mm |
|---|---|
| Height (OU) : | 550 mm |
| Max Sound Power Level (OU) : | 60 dB(A) |
| Weight (OU) : | 30 kg |
| Width (OU) : | 675 mm |
Pipes
| Max Height Difference : | 15 m |
|---|---|
| Max Pipe Run : | 20 m |
Refrigerant
| Refrigerant : | R32 |
|---|
Temperature
| Outdoor Operating Temp. Range (Cooling) : | -10/46 °C |
|---|---|
| Outdoor Operating Temp. Range (Heating) : | -15/18 °C |
