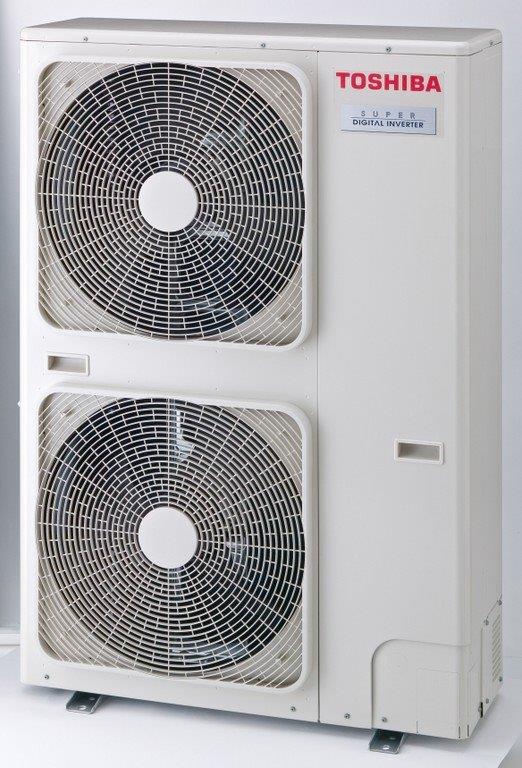

Toshiba 10kw High Static Ducted Outdoor Mid Static
Product code:
AHB1102
This product requires F-Gas certificate
| Product Group : | TOSHIBA |
|---|
General Information
| Product Group : | TOSHIBA |
|---|
Additional Info
| Family : | Digital Inverter Ducted |
|---|---|
| Indoor/ Outdoor/ Other : | Outdoor |
| Indoor Units Connectable (Quantity) : | 1 |
| Single Split / Multi Split : | Single |
Capacity
| Nominal Cooling Capacity : | 10.0 kW |
|---|---|
| Nominal Heating Capacity : | 11.2 kW |
Connections
| Pipe Diameter Gas Side : | 15.88 mm |
|---|---|
| Pipe Diameter Liquid Side : | 9.52 mm |
Cooling Capacity
| Cooling Capacity (Min/Max) : | 3.0-11.2 kW |
|---|
Electrical
| Max Current : | 22.80 A |
|---|---|
| Power Supply : | 220-240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 4.00 |
|---|---|
| EER : | 3.36 |
Heating Capacity
| Heating Capacity (Min/Rated/Max) : | 3.0-13.0 kW |
|---|
Measurements
| Depth : | 320 mm |
|---|---|
| Height : | 890 mm |
| Net Weight : | 64 kg |
| Width : | 900 mm |
Pipes
| Max Height Difference : | 30 m |
|---|---|
| Max Pipe Length Without Additional Refrigerant : | 30 m |
| Max Pipe Run : | 50 m |
Refrigerant
| Refrigerant : | R32 |
|---|
Sound Power/Pressure
| Sound Power Level : | 55 dB(A) |
|---|
Temperature
| Temperature Range Cooling : | -15/46 °C |
|---|---|
| Temperature Range Heating : | -15/24 °C |
| File name | File type | Extension | Size |
|---|---|---|---|
| toshiba-ducted-ast-4308419.pdf | Brochures | 4.28 MB |
